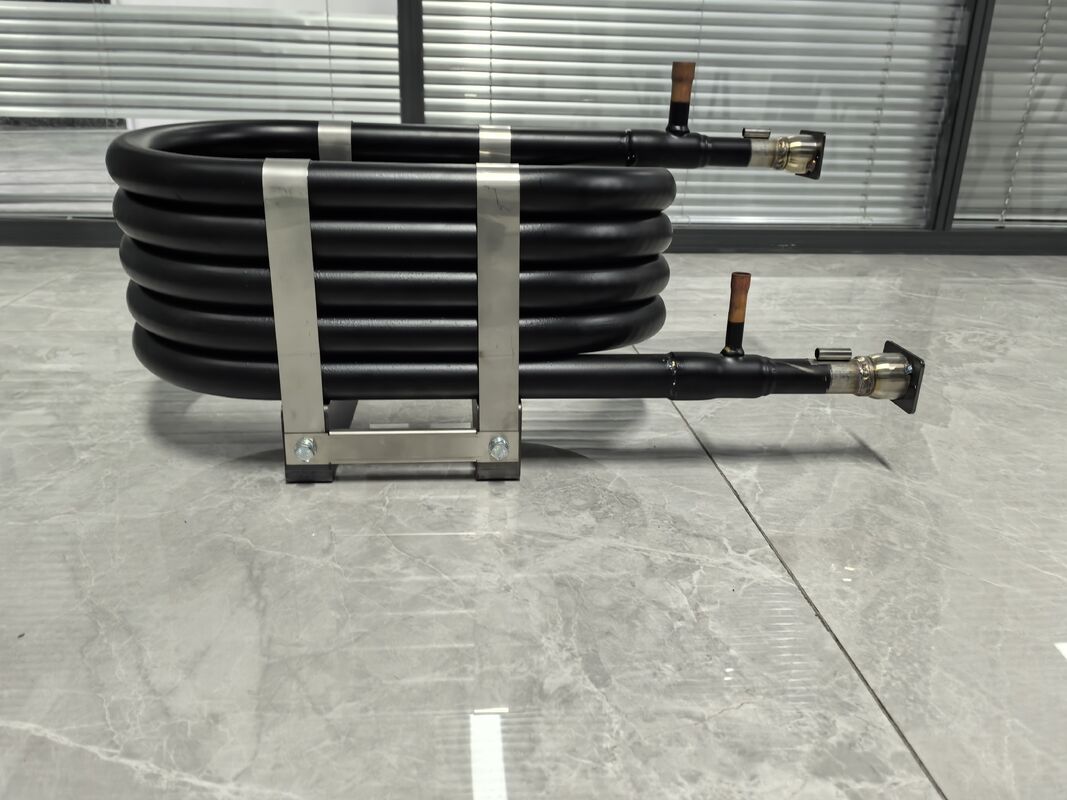

Stainless Steel Inner Tube Coaxial Heat Exchanger with 6 to 36KW Heating Capacity and Spiral Twisting Tube Construction

Product Description:

The Coaxial Heat Exchanger is a highly efficient and reliable solution designed to meet the demanding requirements of various industrial and marine applications. As a specialized type of heat exchanger, it features a unique coaxial design that optimizes heat transfer between two fluid streams while maintaining structural integrity under high-pressure conditions. This model is particularly well-suited for environments where durability, performance, and compactness are essential.

One of the standout features of this Coaxial Heat Exchanger is its impressive refrigerant side pressure capability, rated at 4.2 MPa. This high-pressure tolerance ensures that the heat exchanger can operate effectively in systems dealing with substantial refrigerant loads, making it ideal for heavy-duty refrigeration and air conditioning applications. The ability to handle such pressure levels without compromising performance is a testament to the robust engineering and quality materials used in its construction.

The heating capacity of this heat exchanger ranges from 6 to 36 kW, providing flexibility and scalability for different operational needs. Whether the application requires moderate heating or more intensive thermal energy transfer, this unit can accommodate a wide spectrum of demands. This range makes it versatile enough to be used in residential, commercial, and industrial setups, as well as in marine environments where precise thermal management is crucial.

A distinctive aspect of this Coaxial Heat Exchanger is its tube construction, which employs a spiral twisting design. This innovative approach enhances the heat transfer efficiency by promoting turbulent flow within the tubes, thereby increasing the surface area contact between the fluids. The spiral twisting tubes also contribute to reducing fouling and scaling, which are common issues in heat exchangers exposed to harsh or variable fluid conditions. This design not only improves performance but also extends the operational lifespan of the unit.

On the water side, the heat exchanger is rated for a pressure of 1.0 MPa, ensuring compatibility with standard water circulation systems and providing a stable platform for efficient heat exchange. This moderate pressure rating supports safe and consistent operation in various water-based heating or cooling circuits, further enhancing the unit’s versatility.

In addition to its coaxial configuration, this heat exchanger is closely related to other types such as the finned tube heat exchanger and stainless steel heat exchanger. The finned tube heat exchanger is known for its enhanced heat transfer capabilities due to fins that increase surface area, while stainless steel heat exchangers are prized for their corrosion resistance and durability. The Coaxial Heat Exchanger integrates some of these advantages by utilizing high-quality materials and innovative tube construction, making it a competitive option in both performance and longevity.

Particularly in marine applications, the Coaxial Heat Exchanger proves invaluable. Marine heat exchangers must withstand corrosive saltwater environments, constant vibration, and varying thermal loads. This product’s robust design, combined with its stainless steel construction elements, ensures resistance to corrosion and mechanical stress, making it an excellent choice for shipboard cooling and heating systems. Its compact coaxial layout also helps save space, which is often at a premium in marine vessels.

Overall, the Coaxial Heat Exchanger stands out as a sophisticated and dependable heat transfer solution. Its high refrigerant side pressure rating of 4.2 MPa, flexible heating capacity ranging from 6 to 36 kW, innovative spiral twisting tube construction, and water side pressure capacity of 1.0 MPa collectively contribute to its superior performance. Whether used in industrial processes, HVAC systems, or marine environments, this heat exchanger delivers efficient thermal management, durability, and operational reliability, making it a valuable component in modern heat exchange technology.

Applications:

The Gimleo COAXIAL-Z Coaxial Heat Exchanger is a versatile and high-performance solution designed for various industrial and commercial applications. Manufactured in China, this product boasts certifications including CE, ROHS, and REACH, ensuring compliance with international quality and safety standards. With a minimum order quantity of 20 sets and a price range of 50 to 500 USD per set, it offers excellent value for businesses seeking reliable heat exchange equipment. Each unit is securely packaged in a plywood case to guarantee safe delivery within 21 working days, supported by flexible payment terms requiring 100% payment upon order confirmation.

The COAXIAL-Z model is engineered with robust materials such as stainless steel, SPHC steel tube, or titanium for the outer tube, and stainless steel, copper, or titanium for the inner tube. This combination provides exceptional corrosion resistance and durability, making it suitable for demanding environments where longevity and performance are critical. The refrigerant side pressure rating is 4.2 Mpa, demonstrating its capability to handle high-pressure applications effectively.

In terms of application occasions and scenarios, the Gimleo COAXIAL-Z excels in systems requiring efficient heat transfer, such as HVAC units, refrigeration systems, chemical processing, and marine environments. It is an ideal choice for those needing a stainless steel heat exchanger or finned tube heat exchanger that delivers superior thermal efficiency and resistance to harsh conditions. Its coaxial design, often referred to as a double pipe heat exchanger, enables compact installation and effective heat exchange between fluids with minimal pressure drop.

This product is particularly beneficial in scenarios where space constraints exist but high performance cannot be compromised. For example, it is widely used in cooling circuits, oil cooling, and heat recovery systems within industrial plants. The variety of material options allows customization based on the specific fluid types and temperature requirements, ensuring compatibility and optimal performance. The COAXIAL-Z’s high corrosion resistance also makes it suitable for applications involving aggressive fluids or seawater.

Overall, the Gimleo COAXIAL-Z Coaxial Heat Exchanger is a reliable, efficient, and adaptable solution, meeting the needs of diverse industries seeking high-quality heat exchange equipment. Its proven design and material flexibility make it a preferred choice for applications demanding stainless steel heat exchanger quality, finned tube heat exchanger efficiency, and the compactness of a double pipe heat exchanger.

Support and Services:

Our Coaxial Heat Exchanger products are designed to provide efficient heat transfer solutions for a variety of industrial applications. To ensure optimal performance and longevity, we offer comprehensive technical support and services.

Technical Support includes assistance with product selection, installation guidance, operational troubleshooting, and maintenance recommendations. Our team of experts is available to help you understand the specifications and capabilities of the coaxial heat exchanger to best suit your application needs.

We provide detailed documentation including user manuals, installation guides, and performance data sheets to facilitate proper use and maintenance of the product. Additionally, we offer training sessions and webinars to help your team gain in-depth knowledge of the product features and maintenance procedures.

Our services also include on-site inspections, routine maintenance, and repair services to ensure your coaxial heat exchanger operates at peak efficiency. We recommend regular cleaning and inspection to prevent fouling and corrosion, which can affect heat transfer performance.

For customized solutions, we offer design consultation to tailor the heat exchanger specifications according to your specific process requirements. Our engineering team can assist with modifications and upgrades to existing systems.

By choosing our Coaxial Heat Exchanger, you gain access to industry-leading support and services aimed at maximizing your investment and minimizing downtime.

Packing and Shipping:

Product Packaging: The Coaxial Heat Exchanger is carefully packaged to ensure maximum protection during transit. Each unit is wrapped in anti-corrosive material and secured within a custom-fitted wooden crate or sturdy cardboard box, depending on size and shipment requirements. Protective padding is added to prevent any movement or damage. All packaging materials are environmentally friendly and compliant with international shipping standards.

Shipping: We offer flexible shipping options to meet your needs, including sea freight, air freight, and ground transportation. Each shipment is handled by experienced logistics partners to ensure timely and safe delivery. The Coaxial Heat Exchanger is clearly labeled with handling instructions and shipping details. Tracking information is provided upon dispatch, and we assist with all necessary export documentation to facilitate smooth customs clearance.

FAQ:

Q1: What is the brand and model number of this Coaxial Heat Exchanger?

A1: The Coaxial Heat Exchanger is manufactured by Gimleo and the model number is COAXIAL-Z.

Q2: Where is the Coaxial Heat Exchanger made?

A2: This product is made in China.

Q3: What certifications does the Gimleo COAXIAL-Z have?

A3: The COAXIAL-Z is certified with CE, ROHS, and REACH certifications.

Q4: What is the minimum order quantity and price range for the COAXIAL-Z?

A4: The minimum order quantity is 20 sets, with a price range of 50 to 500 USD per set.

Q5: What are the packaging details and delivery time for this product?

A5: The Coaxial Heat Exchanger is packaged in plywood cases, and the delivery time is 21 working days.

Q6: What payment terms are accepted for ordering the COAXIAL-Z?

A6: Payment terms are T/T with 100% payment required upon order confirmation.

Q7: How many sets of COAXIAL-Z can Gimleo supply daily?

A7: Gimleo has a supply ability of 500 sets per day.
